ADM DUAL Series Saddle. 6mm Counterbored Version - DUAL-M6

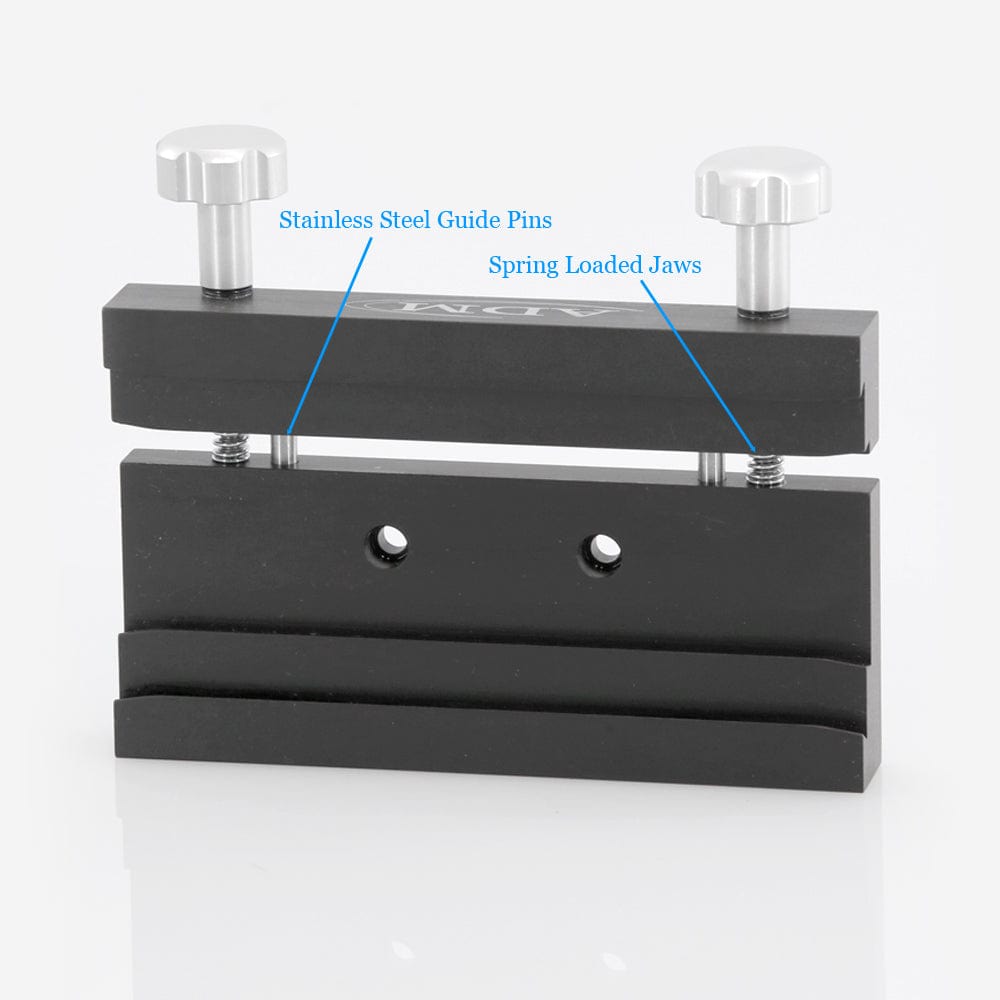

Fits many ADM Accessories mount adapters as well as the Losmandy GM8 and some Takahashi mounts. Accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 1/4″ or 6mm socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick, Wt. 26 oz. Coloured knobs available on request.
INCLUDED ITEMS
-1x DUAL Series Saddle
-2x 1/4×20 SHCS
Specifications
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
Hotline Order:
Mon - Fri: 07AM - 06PM
720-924-6529
Fits many ADM Accessories mount adapters as well as the Losmandy GM8 and some Takahashi mounts. Accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 1/4″ or 6mm socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick, Wt. 26 oz. Coloured knobs available on request.
INCLUDED ITEMS
-1x DUAL Series Saddle
-2x 1/4×20 SHCS
Specifications
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
