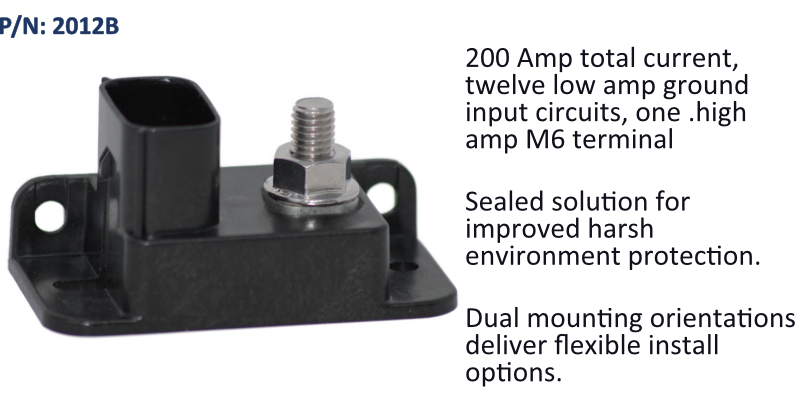

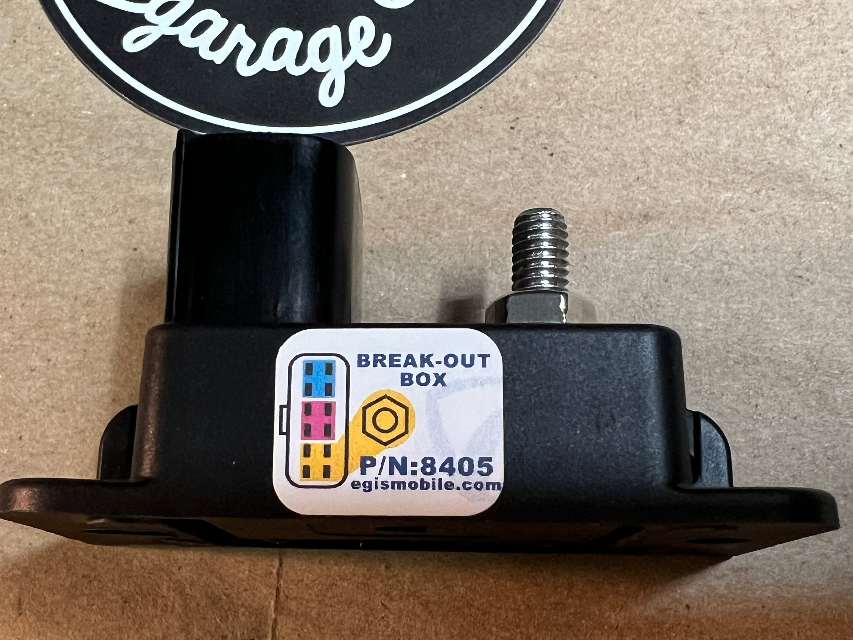

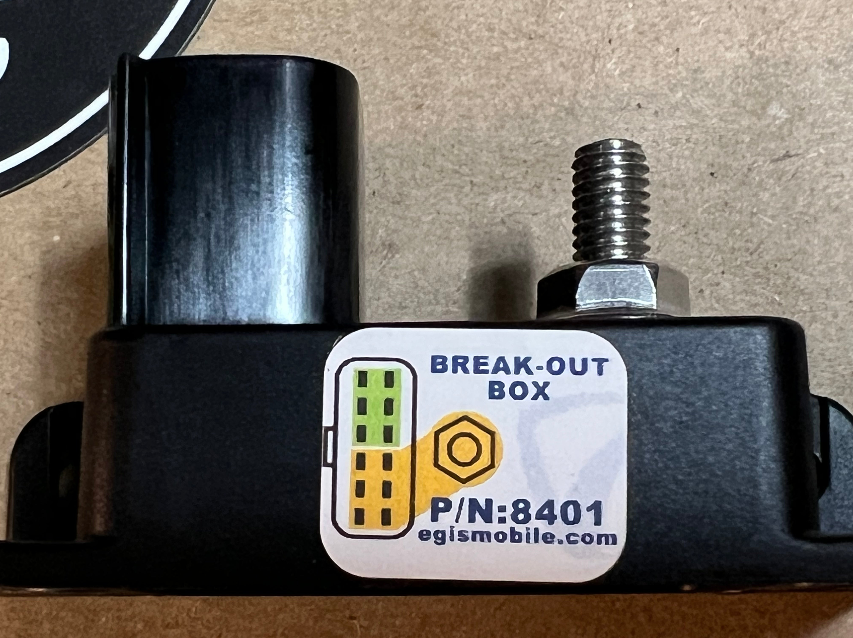

Busbar Sealed (1, 2, & 3 circuits)
Applications / Problems This Solves
Improves robustness of ground return connections and wire to wire connections that are otherwise exposed to corrosion / shorting with busbars and terminal blocks.
Eliminates unreliable butt splice connections and allows for removable pull and test of circuit for system inspection and diagnosis while allowing for sealed connections.
Reduces the mounting space required for busbar and wire connections with a very compact footprint and two mounting orientations, increasing potential locations for installation.
Eliminates unreliable butt splice connections and allows for removable pull and test of circuit for system inspection and diagnosis while allowing for sealed connections.
Reduces the mounting space required for busbar and wire connections with a very compact footprint and two mounting orientations, increasing potential locations for installation.
Bullet-proof Construction: Sealed unit (IP67 / IP6K9K), high temperature materials allow mounting anywhere on vehicle or vessel.
Two Mounting Orientations provide optimal flexibility for installation locations.
max total
CURRENT (AMPS)
200
200
max terminal current
(amps)
22
(amps)
22
cable size for max current (AWG)
2/0
2/0
max cable
size (AWG)
4/0
size (AWG)
4/0
operating temp range (deg c)
-40 /125
-40 /125
VOLTAGE RANGE
(Vdc)
8 - 36
(Vdc)
8 - 36
