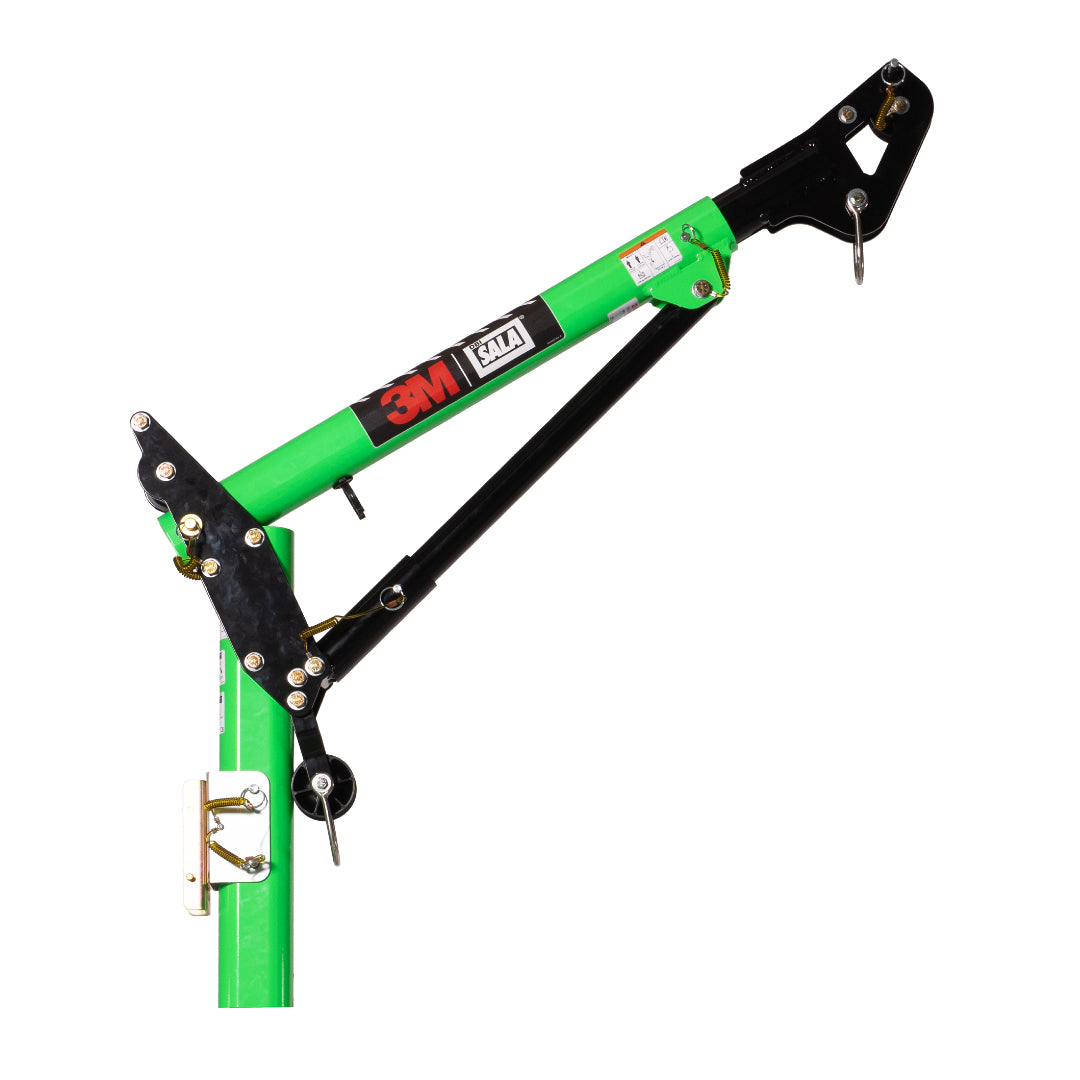

3M DBI-SALA Davit Arm High Capacity

High Capacity Davit Arm

Description

The 3M DBI-SALA Davit Arm High Capacity is a portable davit arm to be used with a range of mast extensions to provide flexibility where access is required at multiple sites. The davit arm can be fitted into a variety of lower masts and bases depending on the requirement at each particular site. The Davit Arm High Capacity may be equipped with front-mounted and/or back mounted winches or self-retracting lifelines and have a 12kN capacity anchor point for a limited free fall arrest anchorage. This product has a quick-release pins to allow for easy collapsibility and transport.

Technical

Features

• Anchor point rated to 12kN at full extension
• Available in short or long version
• Fully adjustable up to 2.91 m high depending on components
• Maximum reach up to 1.13 m depending on components
• Built-in primary and secondary pulleys
• Modular system allows short and long arms to be interchanged
• Quick mount winch/SRL bracket
• Configure with front and/or back mounted winch/SRL
• Compatible with all SALA winches and SRLs
• Certified to AS/NZS 5532:2013 when used as part of a complete system

SPECIFICATIONS

Downloads

Please refer to the 3M DBI-SALA High Capacity Davit Arm and Mast Product Sheet for more information.
