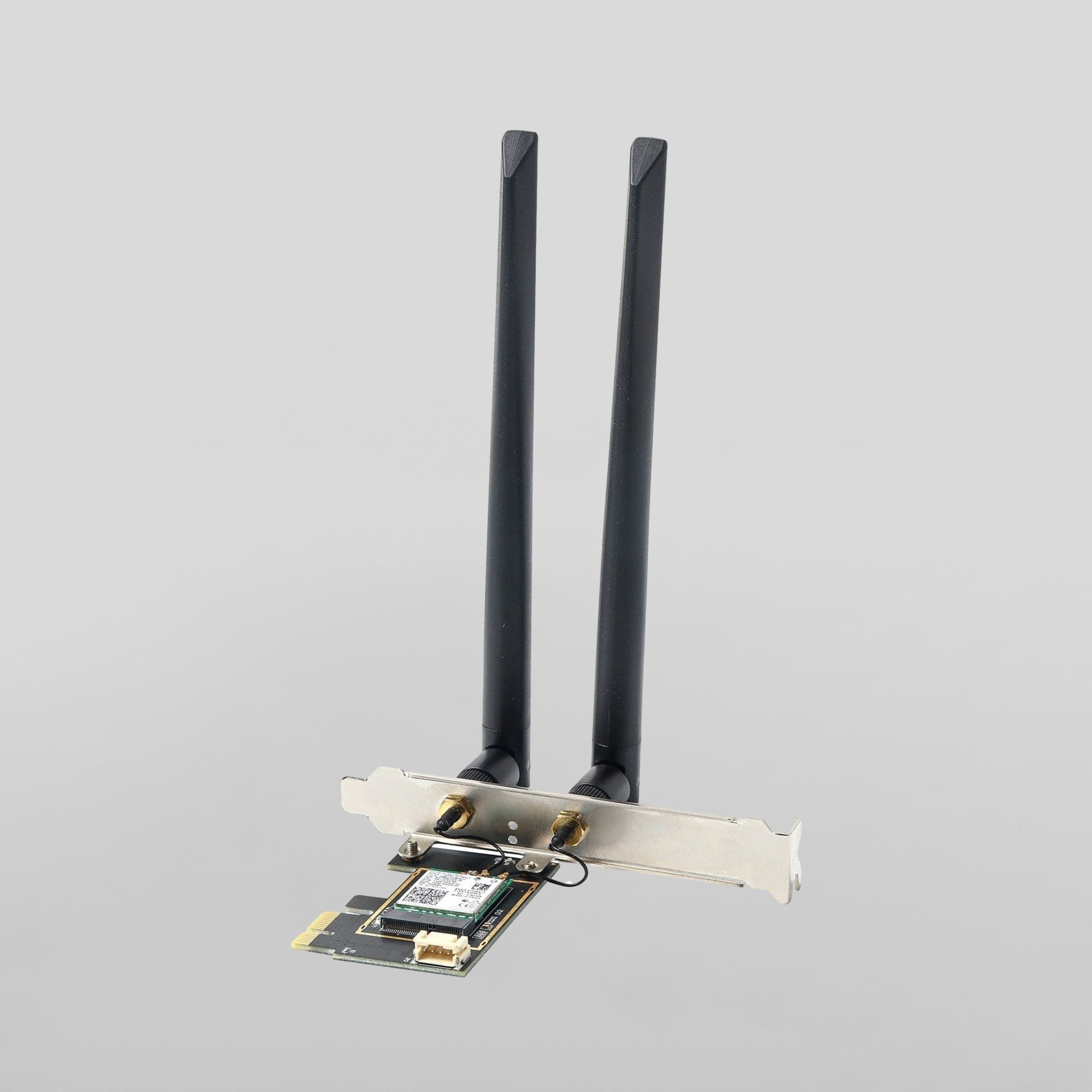

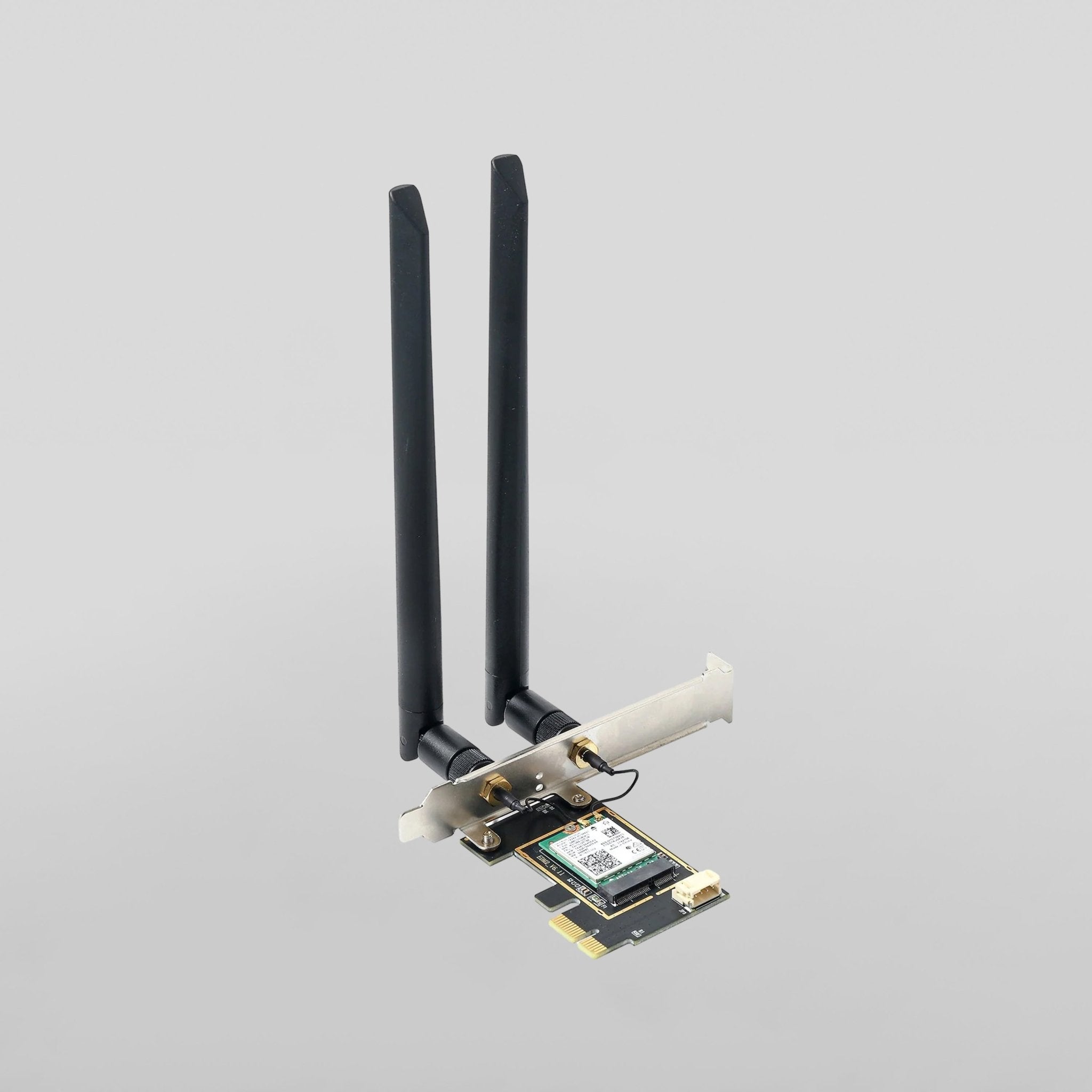

Intel AX210 WiFi 6E PCIe Card with 8Dbi Antennas Set

INTRODUCTION

Take your home WiFi to the next level.

Intel-based WiFi 6E AX210 is the updated WiFi 6E chip solution for laptop and desktop computers. It supports latest 802.11ax WiFi protocol and backward compatible with IEEE 802.11 a/b/g/n/ac. Also supports Bluetooth 5.2 and MU-MIMO. With this PCIe WiFi card mounted on ZimaBoard, you can build a small outdoor WIFI 6 AP system and use OpenWRT to run traffic management and system control on your IoT system.

FEATURE

• 【The latest WiFi 6E Technology】Based on Intel AX210 chipset, WiFi 6E AX210 Brings WiFi into 6GHz, Upgrade your home WiFi to Tri-Band. Max Speed up to 574Mbps @2.4GHz + 2400Mbps @5GHz +2400Mbps @6GHz. 2.4GHz for the long-range, 5GHz for the high speed, 6GHz for the high speed, Interference-free, and Ultra-low Latency
• 【BT 5.2 for More Devices】BT 5.2 is coming with AX210. Compared with 5.1, it has a larger capacity, higher speed, and extremely low latency
• 【Free Surfing Experience】Revolutionary OFDMA, MU-MIMO support greater network flexibility, faster downloads, sharing and backup, ultra-low latency, and better reliability. WiFi 6E network brings the ultra-responsive real-time experience of VR, Gaming, and 8K HD video at the same time
• 【Compatibility And Driver】AX210 WiFi 6E Module have the latest WiFi technology and frequency band resources, which can be compatible with existing WiFi 6 routers and WiFi 6E routers to be released soon, such as ASUS, Netgear, and TP-Link. The latest driver can be downloaded from Intel website by searching "AX210"

SPECIFICATION

• AX210 Wi-Fi 6E chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
• Up to 2400 Mbps on 6 GHz + 2400 Mbps on 5 GHz + 574 Mbps on 2.4 GHz Ultra-Fast Wi-Fi 6 Speed
• Latest Bluetooth 5.2 technology with 2× Faster Speed, 4× Broader Coverage and doubled data rates speed for faster transmissions
• 1024-QAM and 160 MHz bandwidth deliver powerful, continuous Wi-Fi signal, with speeds 3× faster than standard AC Wi-Fi
• OFDMA technology reduces latency by up to 75%, ensures ultra-responsive real-time gaming and smoother experience
• Latest security enhancements on WPA3 provides enhanced protection in personal password safety
• Full compatibility with 802.11ax/ac/a/b/g/n routers
• Full compatibility with Bluetooth 5.2/5.0/4.2/4.0 devices
• Fully supports the latest Microsoft Windows 10 64bit OS, as well as Linux.

SHIPPING LIST

• 1x Intel AX210 WiFi 6E Wifi Card with 8Dbi Antennas Set
